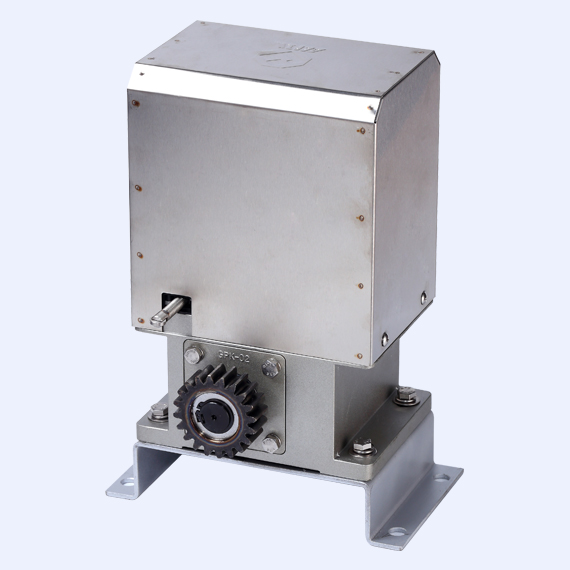

GPK-500
Description
Sliding Gate Operator Features
Special gear box
Worm gears are completely immersed in oil, and isolated by oil seals. No oil leakage will happen. Low noise, and low wear.
Patented two-way limit switch
Accuracy in positioning and safety.
Easy to use
Push the handle slightly and turn clockwise to active manual mode when blackout.
Overheat protection
The sliding gate operator is mounted with fan and heat detective device. These is no need to worry about overheating.
Power Max Load
(kg)		 Capacity
(kw)		 Speed
(m/min)
Max Gate Width
(m)		 Weight
(kg)
1ø  110V 500 0.25 9.7 8 13
1ø  220V

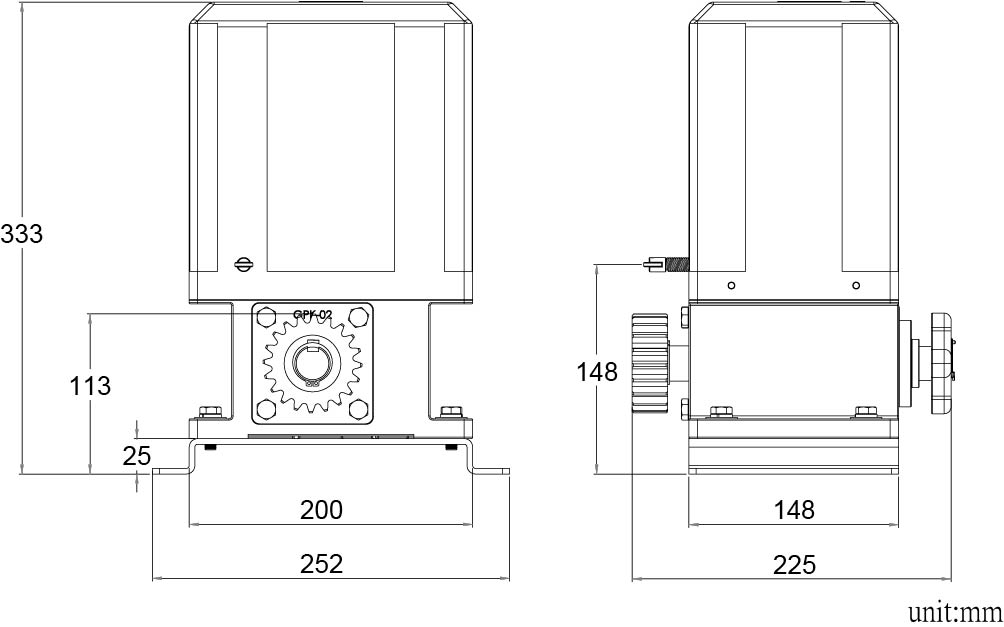

  GPK 500 - Size


Line
